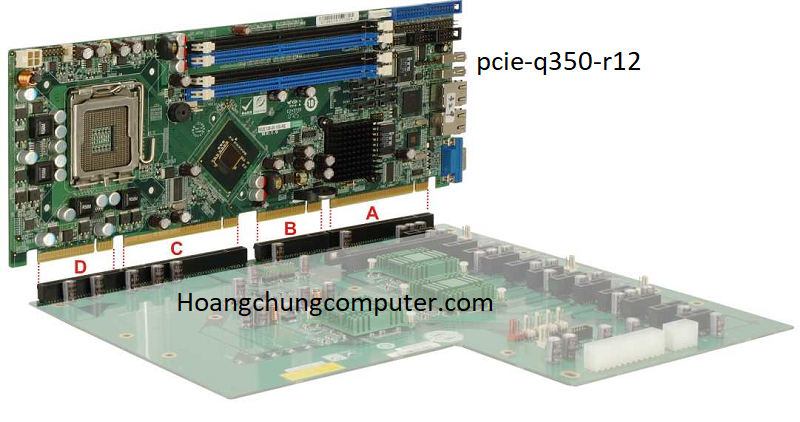

Bo mạch chủ máy công nghiệp PCIE-Q350-R12

SKU: MAIN SERVER

0₫

* Bo mạch chủ máy công nghiệp PCIE-Q350-R12

* Hãng ROHS PCIE-Q350-R12

* Bo mạch chủ máy công nghiệp PCIE-Q350-R12

CPU	LGA775 45nm Intel Core 2 Quad(Yorkfield), Core™2 Duo(Wolfdale) , Core 2 Duo, Celeron at FSB800/1066/1333MHz processors
System Chipset	Intel Q35 + ICH9-DO
BIOS	AMI BIOS Label with 8MB SPI EEPROM
System Memory	4 x 240pin DIMM socket dual channel DDRII at 800/667MHz up to 8GB
Ethernet	Dual GbE LAN1: Intel 82566DM (PHY) LAN2: Intel 82573L(MAC + PHY)
I/O Interface	2 x RS-232 12 x USB2.0 (2 on bracket, 6 on board by pin header, 4 on backplane by pin header) 6 x SATA II support RAID 0, 1, 10, 5 1 x IDE 1 x Keyboard and mouse connector
Super I/O	ITE 8718F
Digital I/O	8-bit Digital I/O, 4-bit input / 4-bit output
Infrared	1 x IrDA by pin header
Audio	10-pin header on board supports 7.1 channel HD Audio by IEI AC-KIT-883HD
SSD	N/A
Display Interfaces	Analog VGA output SDVO port
Expansion	N/A
Watchdog Timer	Software Programmable supports 1~255sec. system reset
Power Supply	ATX
Power Consumption	3.3V@3.0A, 5V@5.1A, 5Vsb@0.28A, 12@4.23A(Intel® Core™ 2 Duo E6700 2.66 GHz at FSB 1066, 8 GB DDR2 667 MHz,3DMark 2001)
Temperature	operation: 0ºC ~ 60ºC (32ºF ~ 140ºF)
Humidity	operation: 5% ~95% non-condensing
Dimensions	338mm x 126mm
Weight	GW:1.1kg
Graphic	Analog VGA output
TPM	1 x 20-pin on-board header for TPM (Trusted Platrom Module)
