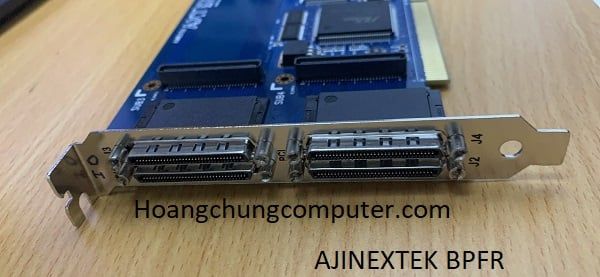

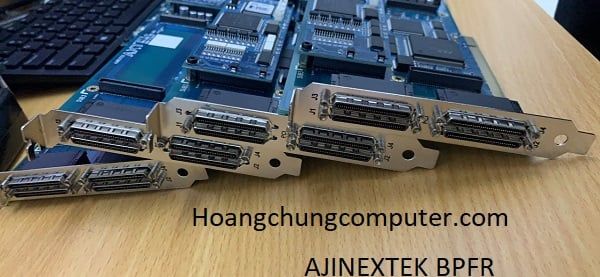

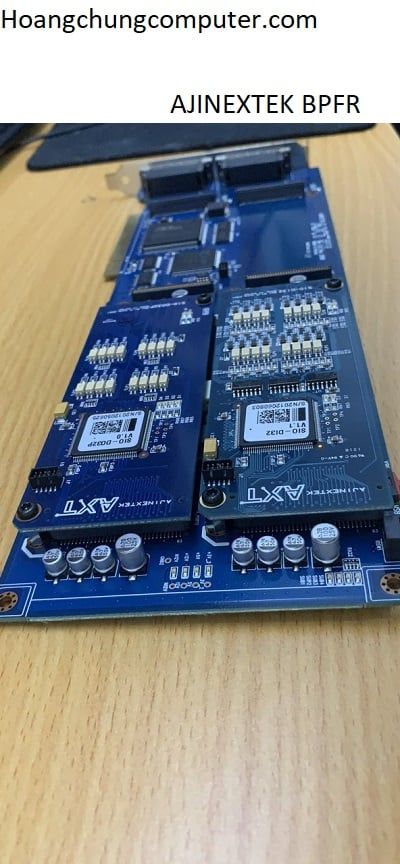

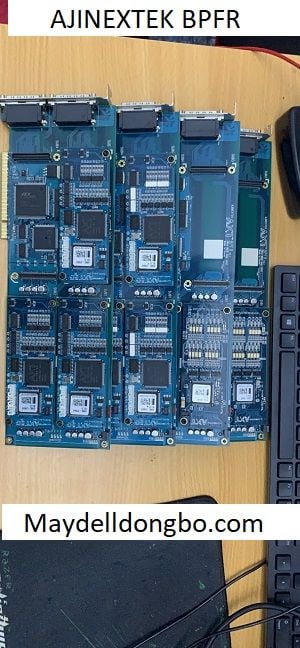

Thiết bị công nghiệp cơ bản board bpfr rev b1.0 cho ajinextek axt BPFR
AJINEXTEK BPFR control module specifications
- Size as 1 PCI standard
- Interface: 32 bit PCI bus, Rev.2.1, 33MHz
- Control panel: 2pin Champ x 68 port 2-port connector
- Source: DC 5V / 3A
- Current: 2500Vrms
![](//file.hstatic.net/1000312895/file/a1_75e430e458df40649a4fdf8c276eb00e_grande.jpg)
![](//file.hstatic.net/1000312895/file/a2_ea03870dcd8f4e759a89d3ac353d5918_grande.jpg)
![](//file.hstatic.net/1000312895/file/a3_495f011b27a4439a9d3d4b94f335d9e9_grande.jpg)
![](//file.hstatic.net/1000312895/file/a4_ae6155915422450d89fe389d8d560cb7_grande.jpg)
![](//file.hstatic.net/1000312895/file/6i3_1bb77a5319ce48dd800afff96513d366_grande.jpg)
![](//file.hstatic.net/1000312895/file/a5_88a9cd8c98fd4118a4ee0d8fbf39e89d_grande.jpg)
![](//file.hstatic.net/1000312895/file/a7_af37fc47582449aea49a3f932d3d9b35_grande.jpg)
![](//file.hstatic.net/1000312895/file/a9_506bcf083afd45dab80d87a58028341f_grande.jpg)
